Short Description (Snippet):
Experience limitless lighting creativity with our

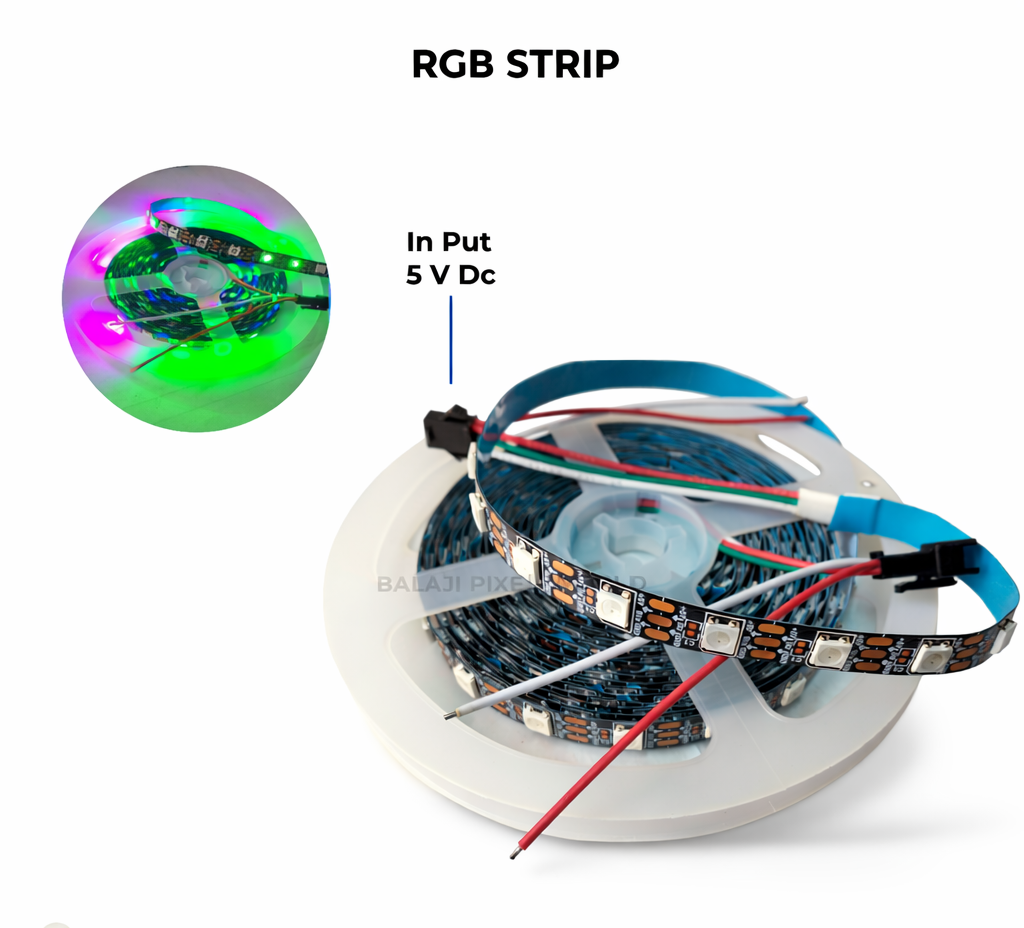

5V WS2812B Addressable RGB LED Pixel Strip
. Unlike the
, this strip features a built-in control IC for each individual LED, enabling pixel-perfect control and stunning dynamic effects for signboards, gaming setups, and home decor.
Key Features
- Individually Addressable: Each single LED on the strip can be controlled independently, perfect for complex animations, chasing effects, and detailed light shows.
- Integrated IC (WS2812B Chip): The control circuit and RGB chip are integrated into a single 5050 SMD package, resulting in a cleaner, more compact design and simpler wiring.
- Vibrant Full Color: Offers 24-bit color control (16.7 million colors), ensuring smooth color transitions and high brightness.
- Low Voltage Operation: Designed to run safely and efficiently on DC 5V power, compatible with standard 5V power supplies and microcontrollers like Arduino or Raspberry Pi.
- Flexible & Cuttable: The strip is made of flexible PCB material and can be cut between every LED (at designated cut-lines) for custom lengths without damaging functionality.
- Easy Connectivity: Comes with 3-pin JST-SM connectors for simple power and data input/output connections (a controller and power supply are required, sold separately).
Technical Specifications
| Specification | Detail |
|---|---|
| Operating Voltage | DC 5V |
| Control IC | WS2812B (Built-in 5050 SMD) |
| LED Type | SMD 5050 RGB |
| Control Mode | Individual LED Control (1 IC per 1 LED) |
| Color Depth | 24-bit (256 grayscale levels per color) |
| Data Speed | 800 Kbps |
| Lifespan | Up to 50,000 hours |
Applications
This versatile LED strip is perfect for projects requiring fine control and detailed lighting effects:
- Custom LED matrix displays and video screens
- Gaming PC case mods and monitor backlighting
- Architectural and smart home mood lighting
- Robotics and wearable technology projects
Important Notes:
- A compatible programmable LED controller and a stable 5V power supply (not included) are necessary to operate this strip. Using the incorrect voltage (e.g., 12V) will cause permanent damage
